Infrastructure as Code (IaC) is revolutionizing how we manage and provision cloud resources. AWS CloudFormation stands out as a key tool in this domain, allowing developers to define, deploy, and manage infrastructure in a declarative and automated way. In this article, we’ll explore how CloudFormation works, its benefits, and some practical strategies to make the most of this tool in your projects.

Introduction to AWS CloudFormation

CloudFormation is a service that enables developers to define infrastructure resources as code. This means that rather than manually configuring AWS services through the console, you can write a CloudFormation template that specifies the resources, dependencies, and configurations needed to set up your cloud infrastructure.

Each CloudFormation template is essentially a blueprint, written in JSON or YAML, which AWS uses to automate the creation of resources such as EC2 instances, S3 buckets, and databases.

A basic CloudFormation template consists of several key sections:

• Parameters: User-defined values you can pass in when the stack is created.
• Resources: The AWS resources to be created.
• Outputs: The values to return after the stack is created.

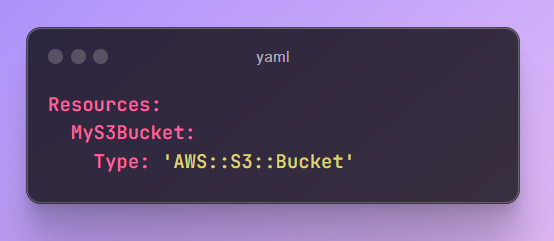

Here’s a very simple template that creates an S3 bucket:

Once defined, you deploy the template to AWS, and CloudFormation handles provisioning, configuring, and linking the services.

Key Features of CloudFormation

CloudFormation comes with a set of powerful functions and features to make infrastructure management more efficient and scalable.

Ref, GetAtt, and Sub Functions

• Ref: This function returns the value of a parameter or a resource.
• GetAtt: Fetches attributes of resources.
• Sub: Used to substitute variables in a string.

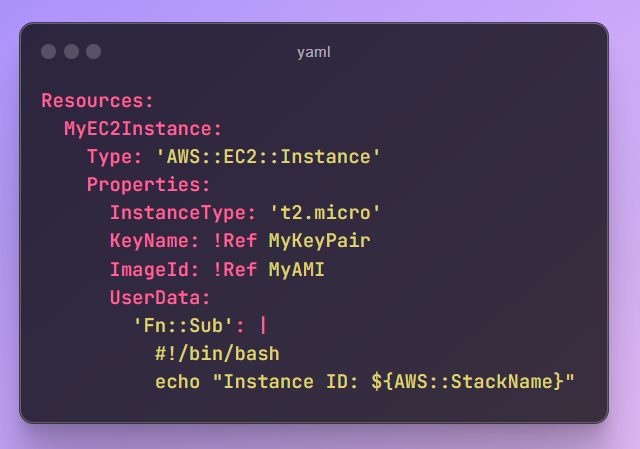

Example using these functions:

In this example, the Sub function is used to dynamically insert the stack name into the user data for the EC2 instance.

Nested Stacks

One of the most valuable features of CloudFormation is the ability to use nested stacks. This allows you to modularize your infrastructure by breaking it into smaller, reusable templates. For large-scale projects, this is crucial to maintain readability and manageability.

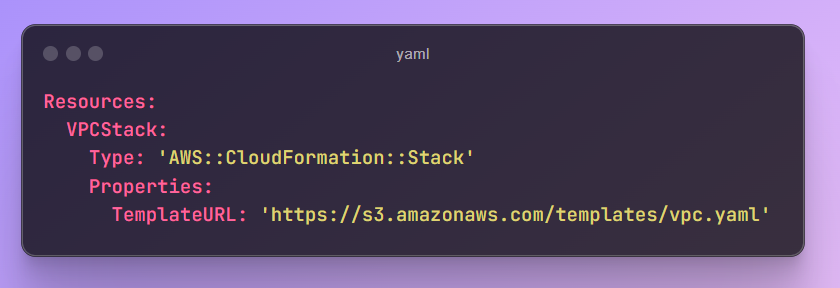

A nested stack can be invoked like this:

This structure helps in organizing complex infrastructures, as each nested stack can focus on a specific service, such as networking or compute resources.

Organizing and Structuring Templates

When working on larger projects, it’s important to structure CloudFormation templates effectively to ensure scalability and maintainability.

• Service-based Grouping: Organizing resources by type, such as networking, compute, or database services, is a common strategy.
• Retention Policies: Certain resources, such as S3 buckets or RDS databases, should not be deleted when a stack is deleted. By applying a RetentionPolicy, you can ensure that these resources are retained.

Here’s how you can define a retention policy for an S3 bucket:

This ensures that even if the CloudFormation stack is deleted, the S3 bucket remains intact.

Testing Locally with AWS SAM

Developing cloud applications often involves testing and debugging locally before deploying to the cloud. AWS SAM (Serverless Application Model) helps you simulate AWS services, like Lambda functions and API Gateway, locally.

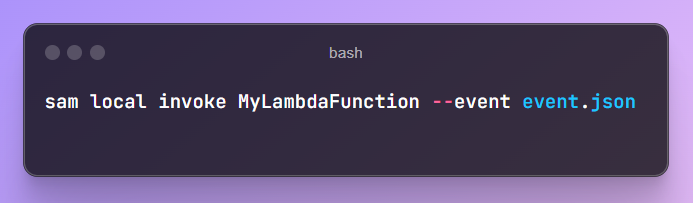

With SAM Local, you can test your Lambda functions without needing to deploy them:

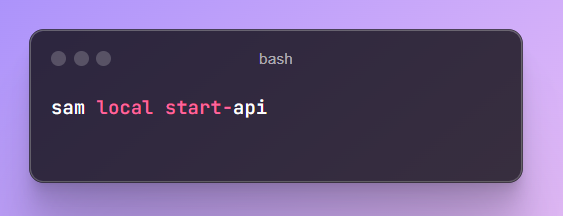

You can also run a local API gateway to test Lambda integrations:

SAM Local is invaluable for developers who want to iterate quickly on their code before pushing changes to the cloud.

Deployment Strategies and Best Practices

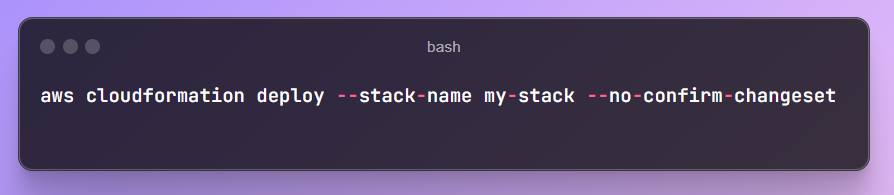

When deploying CloudFormation stacks, there are a few strategies to avoid common pitfalls. One of the most notorious issues is getting stuck in the “UPDATE_ROLLBACK_COMPLETE” state. This usually happens on the first deployment and can be resolved using the –no-confirm-changeset flag.

This flag prevents CloudFormation from waiting for manual confirmation of changes, thus allowing the stack to deploy without interruptions.

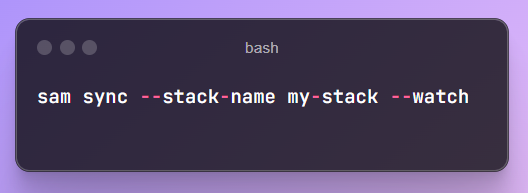

Another useful tool is SAM Sync, which allows you to deploy only the changes to your code without needing a full stack update:

This accelerates the development workflow by allowing faster updates and iterations.

Leveraging AWS PowerTools for Monitoring and Logging

For better integration and monitoring of Lambda functions, AWS PowerTools provides several helpful utilities, such as Tracer, Logger, and Metrics.

The Logger utility, for example, enhances log management by providing structured JSON logs that are easier to search and analyze in CloudWatch.

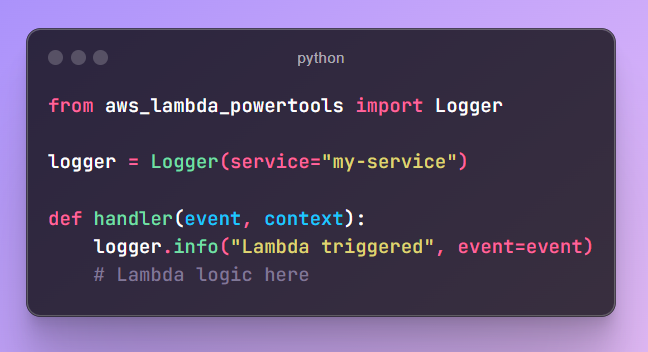

Here’s an example of using Logger in Python:

This approach provides clear, structured logs that can be filtered and searched more easily than traditional logging methods.

Comparing Python vs TypeScript for AWS Infrastructure

In the context of serverless applications, there’s an ongoing debate about using Python versus TypeScript. Each has its pros and cons, but Python tends to simplify deployment and infrastructure management due to fewer dependencies and a more concise syntax.

When comparing the two, Python often results in fewer Lambda functions and a more streamlined deployment process, potentially reducing the complexity of managing infrastructure by up to 90%. The simplicity of Python’s SDK also makes it preferable for handling AWS services programmatically.

Automating Infrastructure with CloudFormation

One of the core benefits of CloudFormation is its ability to automate resource provisioning. You can define resources such as EC2 instances, RDS databases, and even encrypted storage volumes, all in your template.

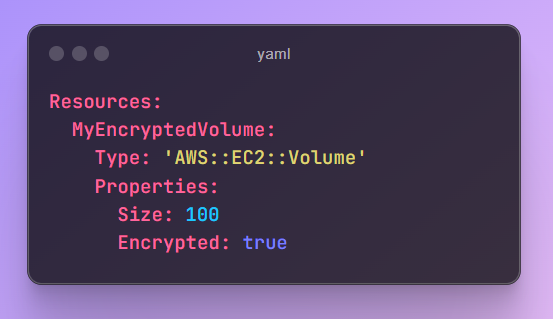

For example, to automate the creation of an encrypted EBS volume:

By leveraging the power of CloudFormation, you can ensure that your infrastructure is consistently deployed, compliant with security policies, and easy to replicate across environments.

Conclusion

CloudFormation and related AWS tools like SAM and PowerTools offer a robust and scalable way to manage cloud infrastructure. By adopting Infrastructure as Code (IaC), you not only automate the provisioning process but also gain greater control, security, and repeatability in your cloud deployments.

Whether you’re working with Lambda functions, EC2 instances, or RDS databases, CloudFormation enables you to define your infrastructure in code and ensure that it can be easily deployed and maintained across environments.

Watch the Zarego Session where this subject was covered (Spanish)
